Diamond hinge boring bits

TECHNICAL DETAILS:

Super-strength steel.
DP head with precision balanced centre point.
2 DP precision ground cutting edges (Z2).
2 DP negatively ground spurs (V2).
Parallel shank with driving flat and length adjusting screw.

REMARK: special diameter available on request.

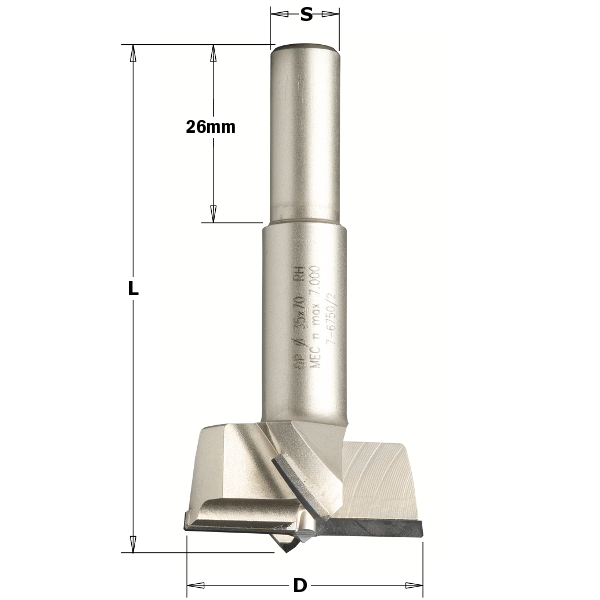

D	DX/SX	Material	L	S	Code	Ava.	Price	Quantity
15 mm.	DX	DP	57,5 mm.	10x20 mm.	317.150.61		€ 274,06 VAT inc. € 337,09
15 mm.	SX	DP	57,5 mm.	10x20 mm.	317.150.62		€ 274,06 VAT inc. € 337,09
35 mm.	DX	DP	57,5 mm.	10x26 mm.	317.350.61		€ 307,52 VAT inc. € 378,25
35 mm.	SX	DP	57,5 mm.	10x26 mm.	317.350.62		€ 307,52 VAT inc. € 378,25
