Solid carbide downcut spiral bits with chipbreaker

Sharp technology with a new twist A special super-micrograin carbide formulation was created to produce and hold a keen cutting edge. The new low-angle spiral is designed specifically to shear wood cleanly and provide efficient chip ejection. The tools run cooler and the edges last longer. Increased feed rate and improved cutting quality for enhanced productivity with CMT! TECHNICAL FEATURES: -Premium quality HWM. -3 spiral cutting edges (Z3R). -Max tooth depth: 0.3mm. -Provide excellent finish on the upper side of the workpiece. -Downward chip ejection.

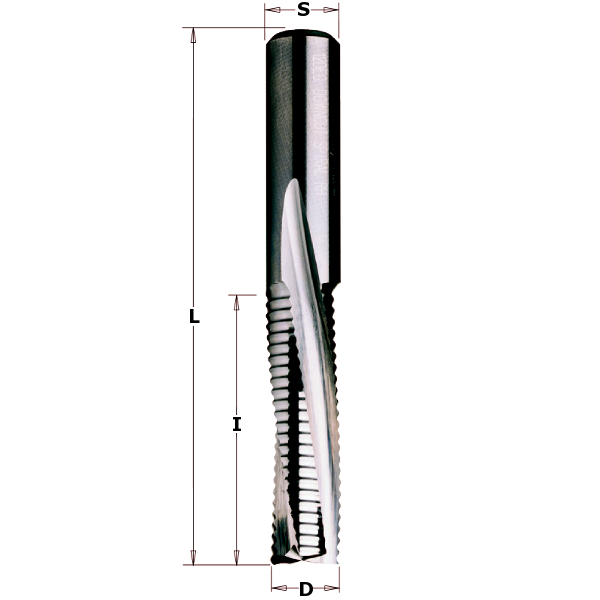

D	DX/SX	Z	Material	I	L	S	Code	Price
8 mm.	DX	3R	HWM	32 mm.	80 mm.	8 mm.	196.081.11	€ 33,25 VAT inc. € 40,89
10 mm.	DX	3R	HWM	42 mm.	90 mm.	10 mm.	196.101.11	€ 58,27 VAT inc. € 71,68
12 mm.	DX	3R	HWM	35 mm.	83 mm.	12 mm.	196.120.11	€ 64,42 VAT inc. € 79,24
12 mm.	SX	3R	HWM	35 mm.	80 mm.	12 mm.	196.120.12	€ 74,65 VAT inc. € 91,81
14 mm.	DX	3R	HWM	50 mm.	110 mm.	14 mm.	196.140.11	€ 107,39 VAT inc. € 132,09
16 mm.	DX	3R	HWM	55 mm.	110 mm.	16 mm.	196.160.11	€ 134,99 VAT inc. € 166,04
16 mm.	SX	3R	HWM	55 mm.	110 mm.	16 mm.	196.160.12	€ 149,15 VAT inc. € 183,45
18 mm.	DX	3R	HWM	55 mm.	110 mm.	18 mm.	196.180.11	€ 165,67 VAT inc. € 203,77
20 mm.	DX	3R	HWM	60 mm.	120 mm.	20 mm.	196.200.11	€ 184,11 VAT inc. € 226,46
20 mm.	SX	3R	HWM	60 mm.	120 mm.	20 mm.	196.200.12	€ 237,59 VAT inc. € 292,24
12,7 mm.	DX	3R	HWM	38,1 mm.	88,9 mm.	12,7 mm.	196.506.11	€ 68,71 VAT inc. € 84,52
15,88 mm.	DX	3R	HWM	54 mm.	109,5 mm.	15,88 mm.	196.509.11	€ 114,94 VAT inc. € 141,37
19,05 mm.	DX	3R	HWM	54 mm.	109,5 mm.	19,05 mm.	196.511.11	€ 171,74 VAT inc. € 211,24
