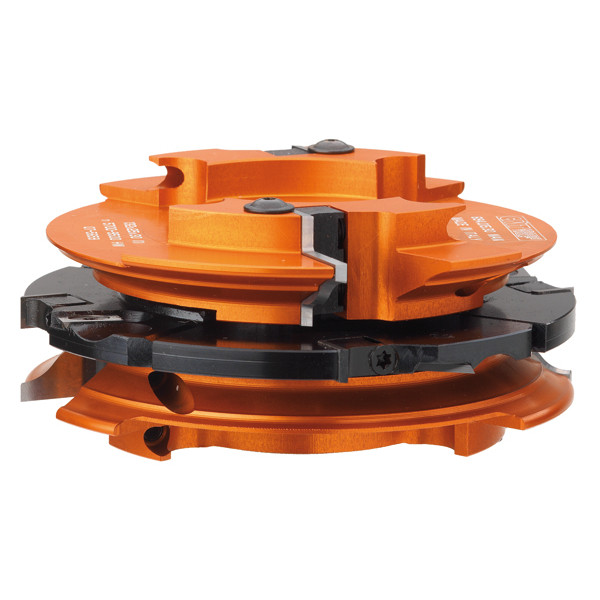

Profile and counter profile cutter head sets

These versatile sets have been designed to make furniture and doors on soft and hardwood. It allows the insertion of five different knives to produce the most popular and classical profiles. The adjustable cutter, included in the set, can also be used individually to carry out grooves from 8mm (5/16") to 15mm (5/8") thick. For use on spindle moulders. Perfect on solid wood and panels with maximum 48mm (1-7/8”) in thickness.​

TECHNICAL DETAILS:


• Hard aluminium alloy body with high resistance to tensile and yield stress for cutter heads (1) & (2).
• Super-strength steel body for cutter head (3).
• 2 HWM knives type (A1) - (25x29,8x2mm - Z2).
• 2 HWM knives type (A2) - (25x29,8x2mm - Z2).
• 4 HWM knives (7,65x12x1,5mm - Z4).
• 4 HWM knives (14x14x1,2mm) for cutter heads (1) & (2).
• 12 spacer rings from 0,1mm to 3mm for cutter heads (1) & (2).
• 12 spacer rings from 0,1mm to 2mm for cutter head (3).
• Tools for manual feed (MAN).
• Pins for the automatic positioning of the knives. Supplied in a solid plastic box.
