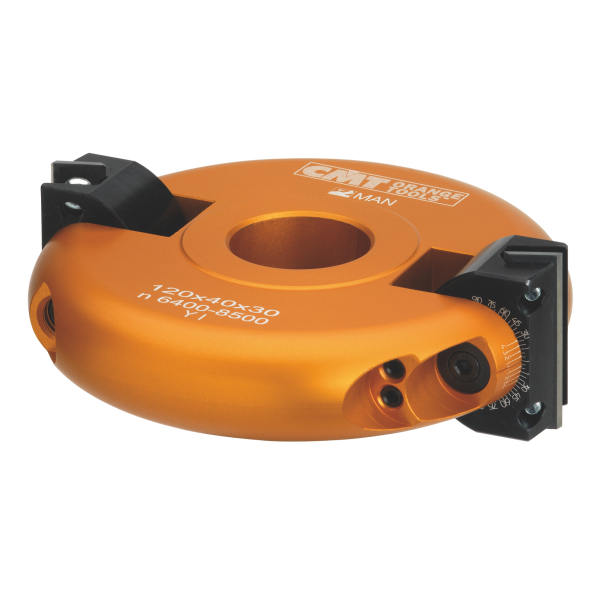

Adjustable chamfer cutter heads with positive stop

TECHNICAL FEATURES: -Hard aluminium alloy body with high resistance to tensile and yield stress. -2 HWM knives (40x14x1,5mm - Z2). -Tools for manual feed (MAN). -Positive lock hold of HWM knives, swivel bodies infinitely adjustable on both sides from 0 to 45?, with positive stop every 7,5? step, thanks to the special built-in geared mechanism. Supplied in a solid plastic box. Max cutting diameters: Item number mm 694.018.30 140 694.018.35 140 694.018.40 165 694.018.50 165
D F Z Material Descr. I Code Ava. Price Quantity
140 mm. 30 mm. HW  Adjustable knife head for chamfering  40 mm. 694.018.30 product available
€ 237,09
VAT inc. € 291,63
140 mm. 35 mm. HW  Adjustable knife head for chamfering  40 mm. 694.018.35 product available
€ 237,09
VAT inc. € 291,63
165 mm. 40 mm. HW  Adjustable knife head for chamfering  40 mm. 694.018.40 product available
€ 290,29
VAT inc. € 357,06
165 mm. 50 mm. HW  Adjustable knife head for chamfering  40 mm. 694.018.50 product available
€ 297,80
VAT inc. € 366,29

Spare parts

Product
694.018.30 695.018.01 790.400.00 991.072.00
694.018.35 695.018.01 790.400.00 991.072.00
694.018.40 695.018.01 790.400.00 991.072.00
694.018.50 695.018.01 790.400.00 991.072.00
