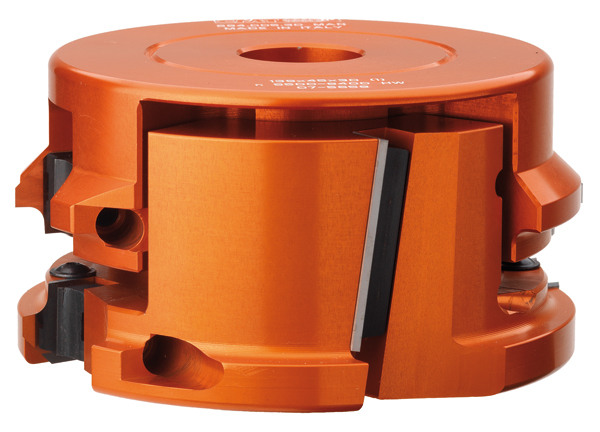

2 piece adjustable rounding and chamfering sets

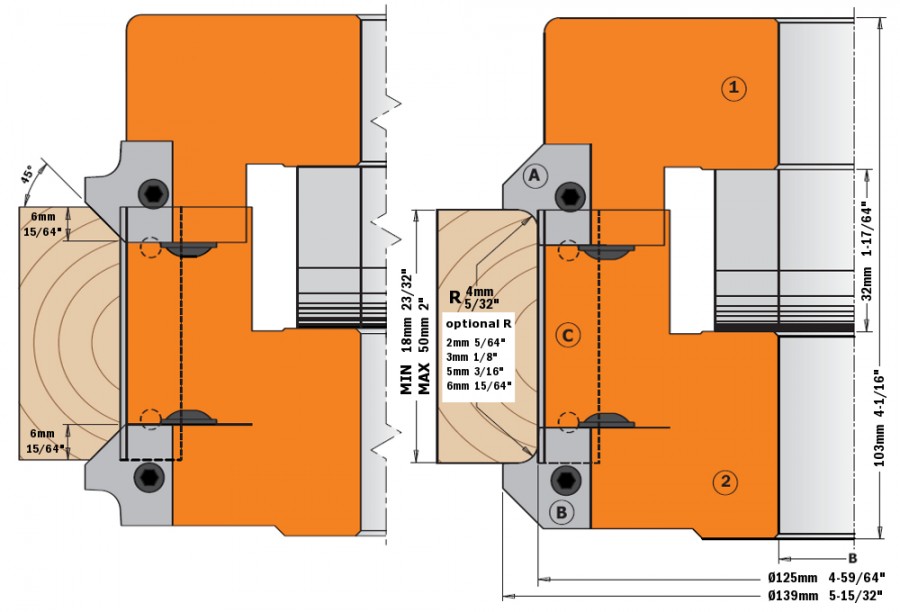

TECHNICAL FEATURES: -Hard aluminium alloy body with high resistance to tensile and yield stress. -One pair of HWM top knives radius 4mm and 45? chamfer (20x20,5x2mm - Z2). -One pair of HWM bottom knives radius 4mm and 45? chamfer (20x20,5x2mm - Z2). -Two HWM knives (50x12x1,5mm). -Set of 21 spacer rings from 0,1mm to 3mm. -Tools for manual feed (MAN). -Pins for the automatic positioning of the knives. Supplied in a solid plastic box. 4mm (5/32") radius: standard profile. 2mm (5/64"), 3mm (1/8"), 5mm (3/16") and 6mm (15/64") radii: optional profiles.

D	F	Z	Material	Descr.	I	Code	Price
139 mm.	30 mm.	2+2	HW	Set of 2 spindle heads for convex radius and beveled to 45 °	18-50 mm.	694.005.30	€ 365,79 VAT inc. € 449,93
139 mm.	31,75 mm.	2+2	HW	Set of 2 spindle heads for convex radius and beveled to 45 °	18-50 mm.	694.005.31	€ 376,81 VAT inc. € 463,47
139 mm.	35 mm.	2+2	HW	Set of 2 spindle heads for convex radius and beveled to 45 °	18-50 mm.	694.005.35	€ 365,79 VAT inc. € 449,93
139 mm.	40 mm.	2+2	HW	Set of 2 spindle heads for convex radius and beveled to 45 °	18-50 mm.	694.005.40	€ 376,81 VAT inc. € 463,47
139 mm.	50 mm.	2+2	HW	Set of 2 spindle heads for convex radius and beveled to 45 °	18-50 mm.	694.005.50	€ 376,81 VAT inc. € 463,47

Spare parts

Product
694.005.30	695.005.A4	695.005.A2	695.998.11	790.500.00
694.005.31	695.005.A4	695.005.A2	695.998.12	790.500.00
694.005.35	695.005.A4	695.005.A2	695.998.13	790.500.00
694.005.40	695.005.A4	695.005.A2	695.998.14	790.500.00
694.005.50	695.005.A4	695.005.A2	695.998.15	790.500.00

Product
